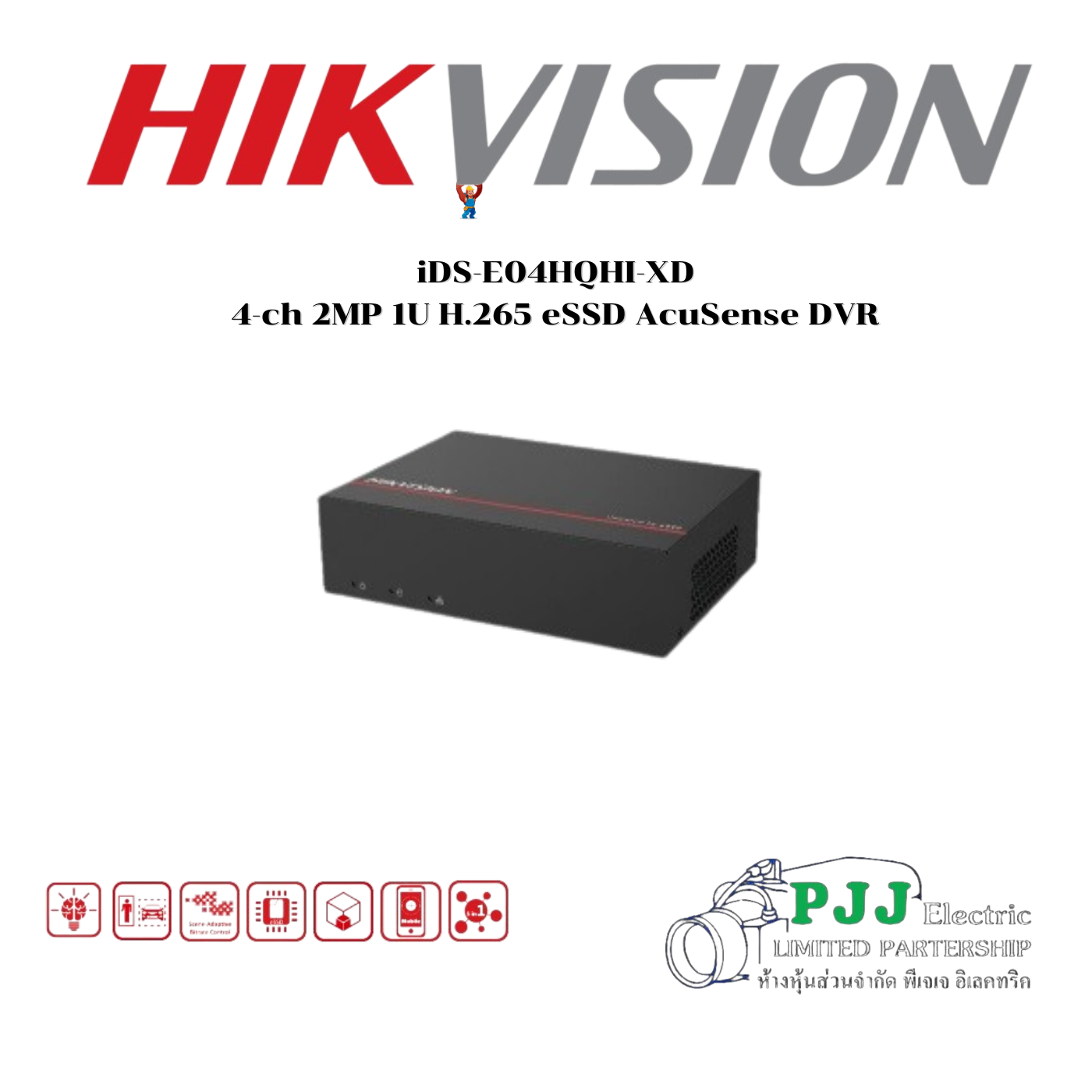

iDS-E04HQHI-XD (สอบถามราคาเพิ่มเติม)

 Specification
Model iDS-E04HQHI-XD Motion Detection 2.0 Human/Vehic le Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Human/Vehic le Analysis Up to 2-ch Recording Video Compression H.265 Pro/H.265 Encoding Resolution When 1080p Lite mode is not enabled: 3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period. Stream Type Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.Audio Compression G.711u Audio Bitrate 64 Kbps
Audio Compression G.711u Audio Bitrate 64 Kbps Video and Audio IP Video Input 1-ch Up to 6 MP resolution Support H.265+/H.265 IP cameras Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps AHD Input 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps CVBS Input Support HDMI Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Mode HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Audio Input 4-ch via coaxial cable Audio Output 1-ch via HDMI Synchronous playback 4-ch Network Total Bandwidth 72 Mbps Incoming bandwidth: 4 Mbps Remote Connection 32 Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface Auxiliary Interface Capacity Built-in 1024 GB eSSD (960 GB available) Note: The device can store about 4 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only USB Interface Rear panel: 2 × USB 2.0 Alarm In/Out OPTIONAL 4/1 General Power Supply 12 VDC, 1 A
Consumption ≤ 5.4 W (with eSSD) Working Temperature -10 °C to 45 °C (14 °F to 113 °F) Working Humidity 10% to 90% Dimension (W × D × H) 151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch) Weight ≤ 0.5 kg (with eSSD, 1.1 lb.
