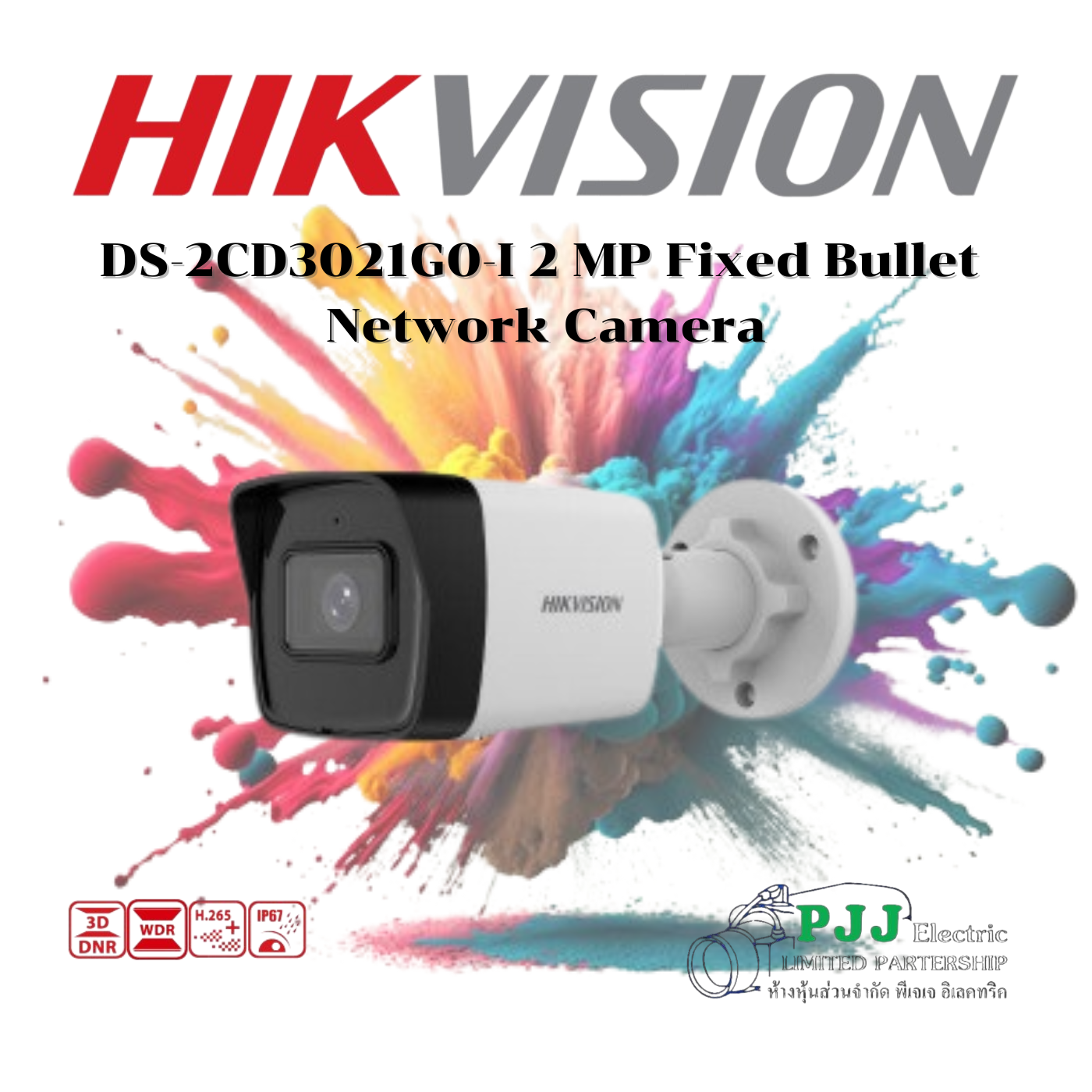

DS-2CD3021G0-I (2.8mm) (C) (ฺBy Order) (สอบถามราคาเพิ่มเติม)

 Specification
Camera Image Sensor 1/2.7" Progressive Scan CMOS Max. Resolution 1920 × 1080 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100, 000 s Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens Focal Length & FOV 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109° 6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65° Lens Mount M12 Aperture F1.6
DORI DORI 2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m
Illuminator Supplement Light Range Up to 40 m Smart Supplement Light Yes IR Wavelength 850 nm
Video Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360) Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, ONVIF Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI User/Host Up to 32 users. 3 levels: administrator, operator and user Client iVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB Image Enhancement BLC, HLC, 3D DNR
Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event Basic Event Motion detection, video tampering alarm, exception Smart Event Line crossing detection, intrusion detection Linkage Upload to FTP, notify surveillance center, send email, trigger capture
General Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Material Metal & Plastic Dimension 170.8 mm × 66 mm × 69.1 mm (6.72" × 2.59" × 2.7") Package Dimension 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") Weight Approx. 270 g (0.6 lb.) With Package Weight Approx. 481 g (1.1 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Language English, Ukrainian General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
