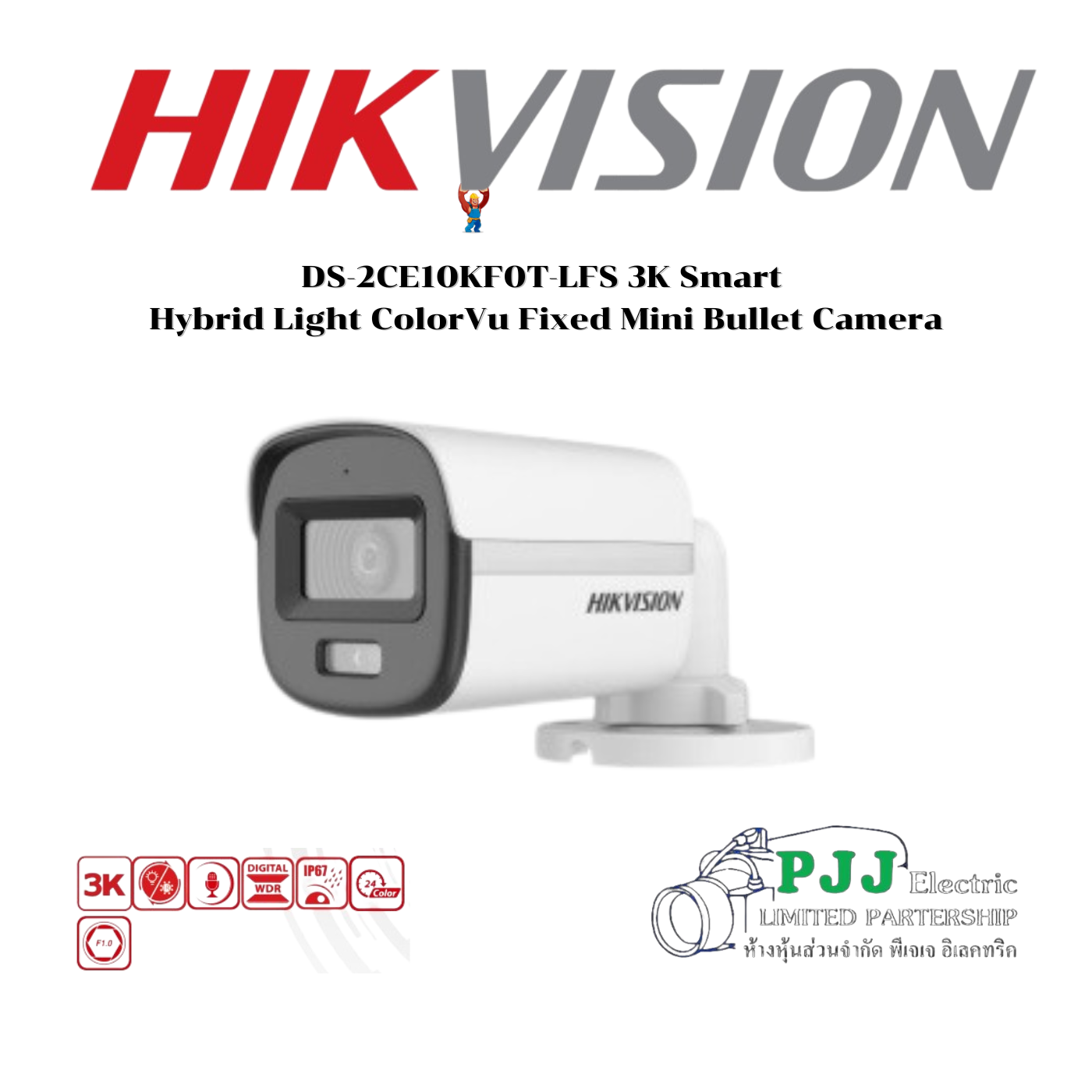

HVS-CE10KF0T-LFS28 DS-2CE10KF0T-LFS(2.8mm) (O-STD)

 Specification
Camera Image Sensor 3K CMOS Signal System PAL/NTSC Resolution 2960 (H) × 1665 (V) Frame Rate TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC Min. Illumination 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm fixed focal lens Field of View 2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112° Lens Mount M12 Light Alarm Solid Light Alarm (White Light) Day ＆ Night ICR WDR (Wide Dynamic Range) Digital WDR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Illuminator Supplement Light Type IR, White Light Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m Smart Supplement Light Yes Image White Light Auto/Off Image Mode STD/HIGH-SAT/HIGHLIGHT AGC Yes Day/Night Mode Auto White Balance Auto/Outdoor/Global/Manual AE (Auto Exposure) Mode DWDR,BLC,HLC,Global,HLS Noise Reduction 2D DNR Language English Function Brightness,Smart IR,Sharpness,Anti-Banding,AGC Interface Video Output Switchable TVI/AHD/CVI/CVBS Audio In Built-in mic General Power 12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera. Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) Protection Level IP67 Material Front cover: Plastic Main body: Metal Communication HIKVISION-C Dimension 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
