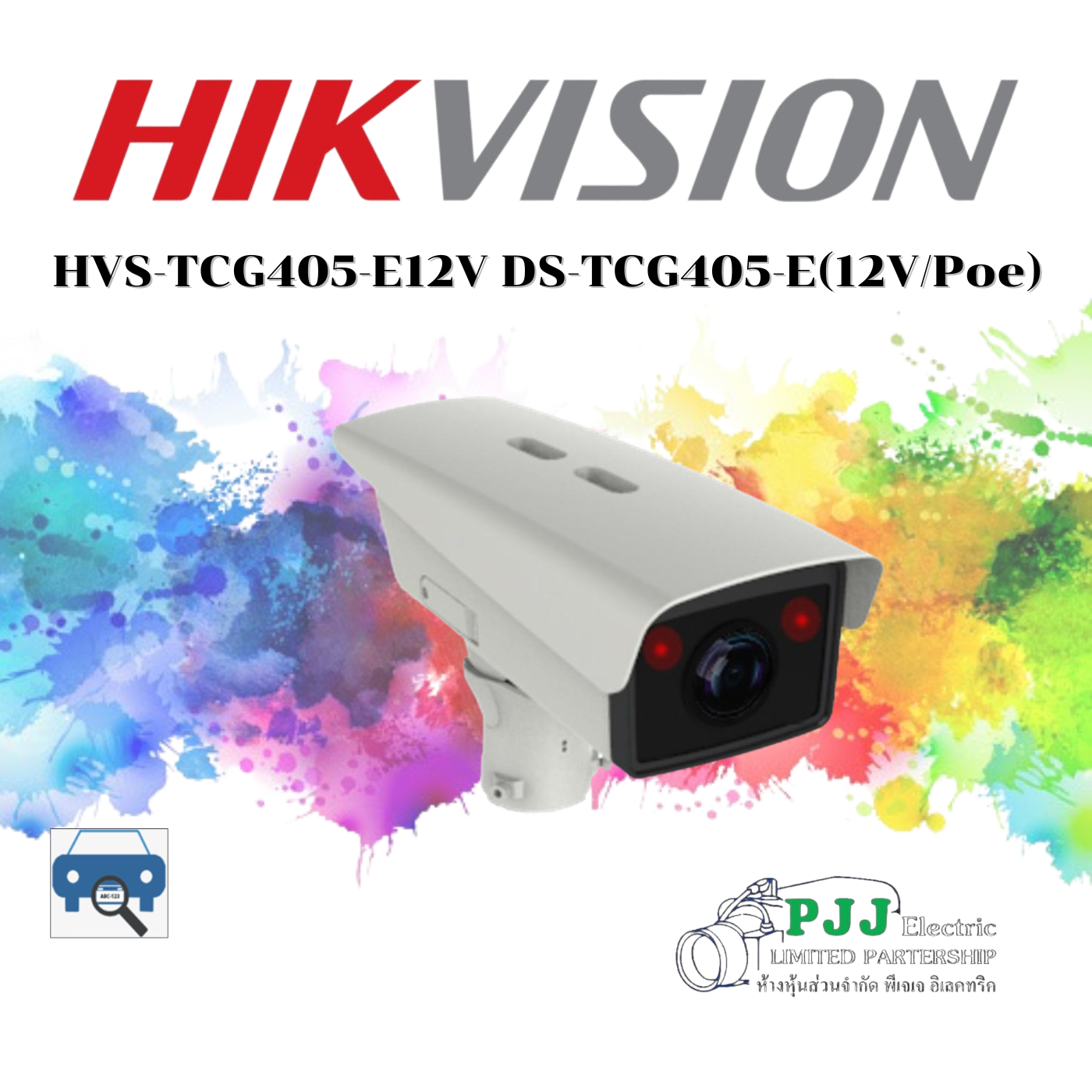

DS-TCG405-E(12V/Poe) (สอบถามราคาเพิ่มเติม)
รายละเอียดสินค้า
- Camera
- Sensor Type1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. Illumination
Color: 0.022Lux@(F1.9, AGC ON)
B/W: 0.011Lux@(F1.9, AGC ON)
- Shutter1/30 s to 1/100,000 s
- Day/Night SwitchSupported
- IR Cut Filter
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
- Lens Type3.1 to 6 mm
- Aperture3.1 to 6 mm：F1.9
- Focal Length & FoV
3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°
- FocusAuto,Vari-focal lens, motor-driven lens
- Supplement Light
- Supplement Light TypeIR Light, Warm White Light
- Supplement Light Range
Video:
3.1 mm to 6 mm: 10 m
Vehicle License Plate:
3.1 mm to 6 mm: 5 m
- IR WavelengthWarm White Light 3000 K, IR Light 850 nm
- Image
- WDR140 dB
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Image Settings
Saturation: 0 to 100
Brightness: 0 to 100
Contrast: 0 to 100
Gain: 0 to 100
3D DNR: Off, Normal, and Expert modes are selectable.
White balance: White Balance 1 and White Balance 2 are selectable.
- Image Parameters SwitchYes
- WDR SwitchOn, Time, Brightness
- Frame Rate25 fps (P)/30 fps (N)
- Video
- ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
- H.264 Type
Low profile
Medium profile
High Profile
- Video Bit Rate32 Kbps to 16 Mbps
- Bit Rate TypeConstant, Variable
- Scalable Video Coding (SVC)H.265 and H.264 encoding
- Capture Mode
- Trigger TypeVideo Detection, I/O Coil, Radar Mixed Traffic
- Picture TypeScene Picture, Scene Picture + Close-up Picture
- Scene ModeEntrance & Exit Toll Gate, Underground Parking Entrance & Exit
- Capture TypeStrobe Light Mode
- Capture Parameters
- Image FormatJPEG
- Capture Resolution2688 × 1520
- License Plate RecognitionForward, Backward, Bidirection
- Fake Plate FilterYes
- LED ControlSupports automatic light control/time control of LEDs
- Smart RecognitionANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
- Capture Picture OverlayLocation, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type
เงื่อนไขอื่นๆ
- Entrance And Exit
- Barrier Gate Control ModeBy Camera/Platform/Mixed
- Keep Boom Pole Open For Following VehicleEnable/Disable
- Lock Barrier Gate For Large-Sized VehicleYes
- Relay Output2-ch relay output, supporting opening and closing of barrier gates
- Barrier Gate StatusNone, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
- Allowlist And Blocklist
Up to 100,000 allowlist and blocklist totally
Note: Only when the TF card is available, can the function take effect.
- Network
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
- ClientHik-Central,SDKdemo,PMS
- Web BrowserPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Interface
- Audio1 input (line in), 1 output (line out)
- Communication Mode1 RJ45 10M/100M Ethernet port
- Alarm Input3-ch triggered inputs
- Alarm Output1-ch alarm output
- WiegandNot support
- RS-2321-ch RS-485 serial port
- RS-4851-ch RS-232 serial port
- Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Memory Card Slot1 TF card slot, up to 1 TB
- General
- Working Temperature & Humidity
-25°C to 70°C (-13°F to 158°F)
90% or less (non-condensing)
- Power Supply12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
- Working Consumption10 W Max.
- Dimensions415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
- Weight3.25 kg (7.17 lb.)
- Weight (With Package)4.3 kg (9.48 lb.)
- Dimensions (With Package)480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)
- Storage Conditions
Temperature: -20 °C to 70 °C (- 4°F to 158 °F)
Humidity: 95% (non-condensing)
- Startup And Operating Conditions
Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: 95% (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014);
KC (KN 32: 2015, KN 35: 2015)
- Security
CB (IEC 62368-1: 2014 + A11);
CE-LVD (EN 62368-1: 2014/A11: 2017);
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)
- Smart Function
- LPR Accuracy
Capture rate > 98%
Vehicle moving direction recognition accuracy > 98.5%
LPR accuracy > 98%
Mistaken capture rate < 2%
European:
LPR accuracy > 98%
Country/Region recognition accuracy > 95%
- Vehicle Type RecognitionCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
- Vehicle ColorRed, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
- Vehicle Brand84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
- ANPR Supported Country/Region
Middle East:
The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
Africa:
Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
Asia-Pacific:
Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka
America:
Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala
Europe:
Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina
Russian-Speaking Regions:
Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
